PREFACE: This post is part of the Zero to Hero series.

Salesforce terminology can sometimes be confusing (or seem confusing at the very least). This is especially true when you’re new to the platform. Today’ we are going to focus our efforts on understanding objects in Salesforce; specifically custom objects.

At the same time, we will also be continuing to build our family management application in your developer orgs. If you haven’t read the previous Zero to Hero post, be sure to catch up on that first by clicking here.

Standard vs Custom Object

In the very first Zero to Hero post titled Understanding Salesforce as a Database, we looked at the basics of database design and how Salesforce fits into that. If you remember, we talked about tables, columns and rows.

Salesforce database tables are called Objects. There are two different types of objects in Salesforce – standard and custom. You’ve probably heard these terms and though to yourself “what’s the difference between these two objects?”

When you unwrap any brand new Salesforce org (like your developer org for example), you’ll notice that there is some functionality already set up ready for use. This includes standard objects like Accounts, Contacts and Cases.

What Salesforce doesn’t have out of the box is functionality that suits your business need. This is where custom objects come into play. You can build your own custom objects to satisfy specific business needs.

Custom objects contain all of the same components as standard objects. The only difference is that Salesforce has provided some objects for you (standard objects) and has given you the ability to build your own objects (custom objects) as needed by the business.

Creating a Custom Object

Let’s take a quick moment to review what it is that we are building in our developer orgs.


Part of the family management app we’re building includes an area to track automotive repairs and related expenses. Last time we customized the Account standard object by creating a page layout and record type to capture details about the repair shop.

Today, we are going to create our very own custom object. Two of them actually. One to track the details of your vehicle and one to track the details of the related repair.

Creating a Custom Object

Creating a custom object is quite easy. So, let’s walk through the steps to create our first object called Repairs.

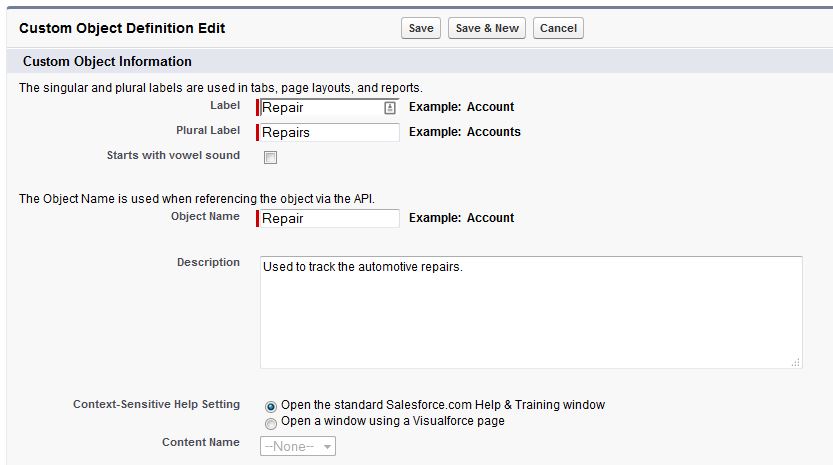

  1. After logging into your Salesforce developer org, click Setup | Create | Objects.
  2. At the top of the page, click New Custom Object to open the wizard.
  3. In the Label field, enter the singular version of the object name which in our case will be Repair.
  4. In the Plural Label field, enter the plural version of the object name which in our case will be Repairs.
  5. Enter a short description of this object (like what it will be used for) in the Description field. This is a best practice so make sure to get into the habit of providing a description for everything you create.Custom Object Setup Step 1

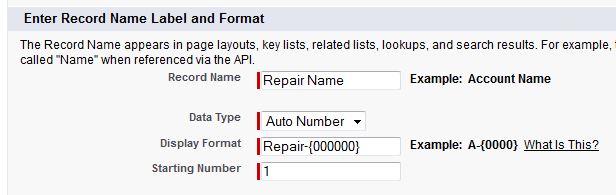

  6. In the Enter Record Name Label and Format section, we’re going to make a few changes to allow for an auto number as the name.
    1. In the Data Type field, choose Auto Number
    2. In the Display Format field, enter Repair-{000000}
    3. In the Starting Number field, enter 1 Custom Object Record Name

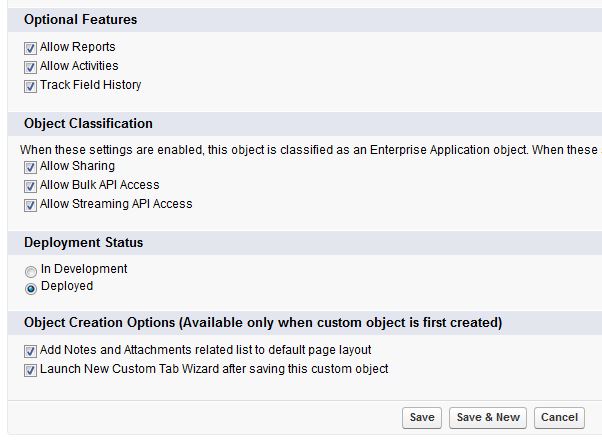

  7. In the Optional Features section, check the boxes for Allow Reports, Allow Activities and Track Field History.
  8. In the Object Classification section, confirm that all boxes are checked.
  9. In the Object Creation Options section, check both boxes (Add Notes and Attachments related list to default page layout and Launch New Custom Tab Wizard after saving this custom object). Object Settings

Great! Before we hit save, let’s do a quick review of what we just did and why.

Custom Object Label and Plural Label

When creating a custom object, Salesforce asks for the singular and plural version of what you want the object to be called. The reason for this is so that the language used on buttons and other areas of Salesforce are grammatically correct. For example, if we entered Repairs as the value for the field Label, the button we would use to create the repair on the Account object would read New Repairs instead of New Repair. Since we are technically creating one new repair record at a time, the word Repairs is incorrect.

Auto Number vs Text Name Field

Auto Numbers replace the text name field of a record. Instead of having to fill in every name field for every repair, Salesforce will generate a unique number for every record. This is a great option for this type of record because the name would more than likely be the same for every repair. Using a unique number reduces the number of fields to fill out and provides us a reference number which can be searched and reported on in Salesforce.

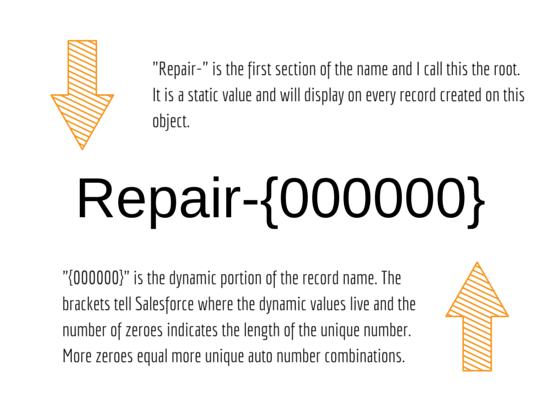

The Display Format field allows us to customize how the auto number displays. Here’s a breakdown of the name as it is formatted here.


Optional Features

The remainder of the custom object creation page are permissions and properties of the object. Here is what each one does.

  • Allow Reports – checking this box allows the object to be accessible in Salesforce reports. This box should always be checked. I can’t think of a reason why this box would not be checked.
  • Allow Activities – when this box is checked, users will have the ability to create tasks and events on the record. I prefer to check this box in the beginning. If the business decides we don’t need to have activities on the object, it can always be removed.
  • Track Field History – enables the ability to track changes in specific field values. This is important for records where an “audit trail” of changes are needed. Activating field history tracking also allows you to generate a report on these changes.
  • Add Notes & Attachments related list – checking this box allows users to create notes and upload attachments to the record. Again, I tend to activate this in the beginning and remove it later if needed.
  • Launch New Custom Tab Wizard – this option is only available when creating a new custom object. An object must be associated with a tab in order to be listed on the tab ribbon at the top of the page or to be accessible as a stand-alone object. There are instances when you may not want to create a custom tab, like if you want to force users to access the data only through a related record or if you have tab limits (Enterprise Edition and lower).

Great! Now that we have gone through the creation process and reviewed all of our options, let’s complete the creation of this object. We’ll click Save at the bottom of the page to save our object settings and launch the custom tab wizard.

On the New Custom Tab wizard page, click the magnifying glass icon next to the Tab Style field. This will allow you to select an icon and color scheme for the new tab. For the Repairs object, let’s choose the Wrench. Once selected, click Save to complete the tab setup.

Now that the repairs custom object is created, we need to repeat that process to create a second custom object to track automobiles. Go through the same process as above, but use the following settings to create this object.

  • Object Name – Use Automobile as the object name. Don’t forget to indicate the plural of the object name in the appropriate field.
  • Record Name – Leave this as text instead of Auto Number. This will allow us to enter the specific name of the vehicle.
  • Tab Style – when selecting a tab style from the Custom Tab Wizard, choose Keys.

Viewing Our Custom Objects

Now that the objects are created, we can now manage these objects just like any other object in Salesforce. It’s important to note that accessing a custom object is different than accessing a standard object.

Custom objects are always going to be found in the Objects section of Salesforce under the Create menu within Setup whereas standard objects will be listed under the Customize menu.

If we look at our newly created custom objects, you’ll notice that there isn’t a whole lot there.

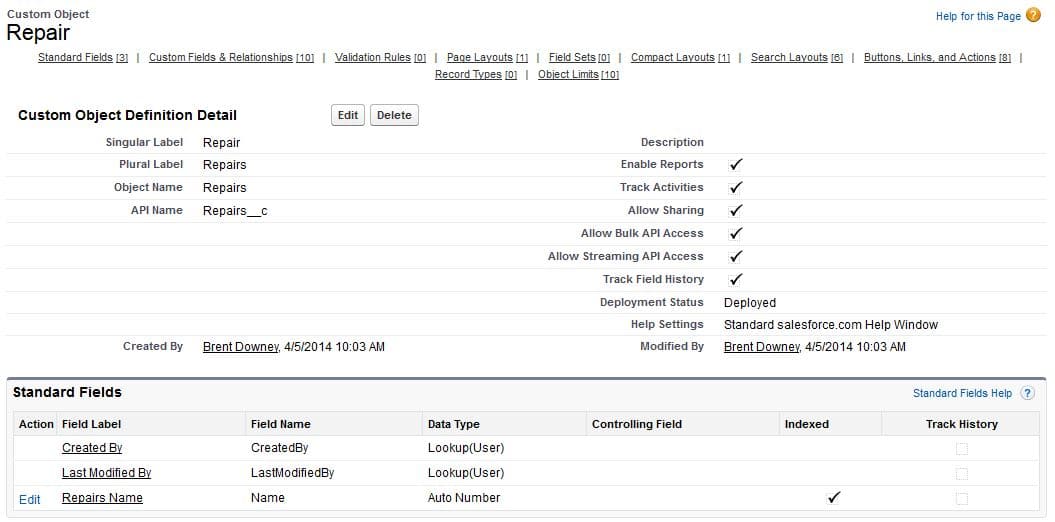

Repairs Custom Object

The settings at the top of the page were set by us, and Salesforce has automatically created three fields, Created By, Last Modified By and the name field. Creating the custom object means that we’ve assembled the box, but there is nothing in that box quite yet.

It’s also important to note that this object is not related to any other object. It’s an island right now. To make this object useful, we need to create custom fields to track data related to repairs and automobiles and build some relationships to other objects in order to create meaningful data.

In the next post, we’ll cover the basics of fields, field types, and relationships and we’ll finish the configuration of this section of our family management application!


You’ve completed yet another lesson in the Zero to Hero series! How are things going? What questions or comments do you have? Post a comment below or email me at I would love to hear how Zero to Hero is helping you learn Salesforce (and where you are still stuck).
